Rotating system TM-50.49

Rotating system
TM-50.49

For receiving from and handing over to an assembly table

  • Manually rotatable vertical roller conveyor
  • Brake for securing the roller conveyor
  • Bottom roller conveyor, length 2.000 mm
  • Roller conveyor with steel rollers, length 300 mm
  • Maximum heigh: 3.300 mm

Specifications

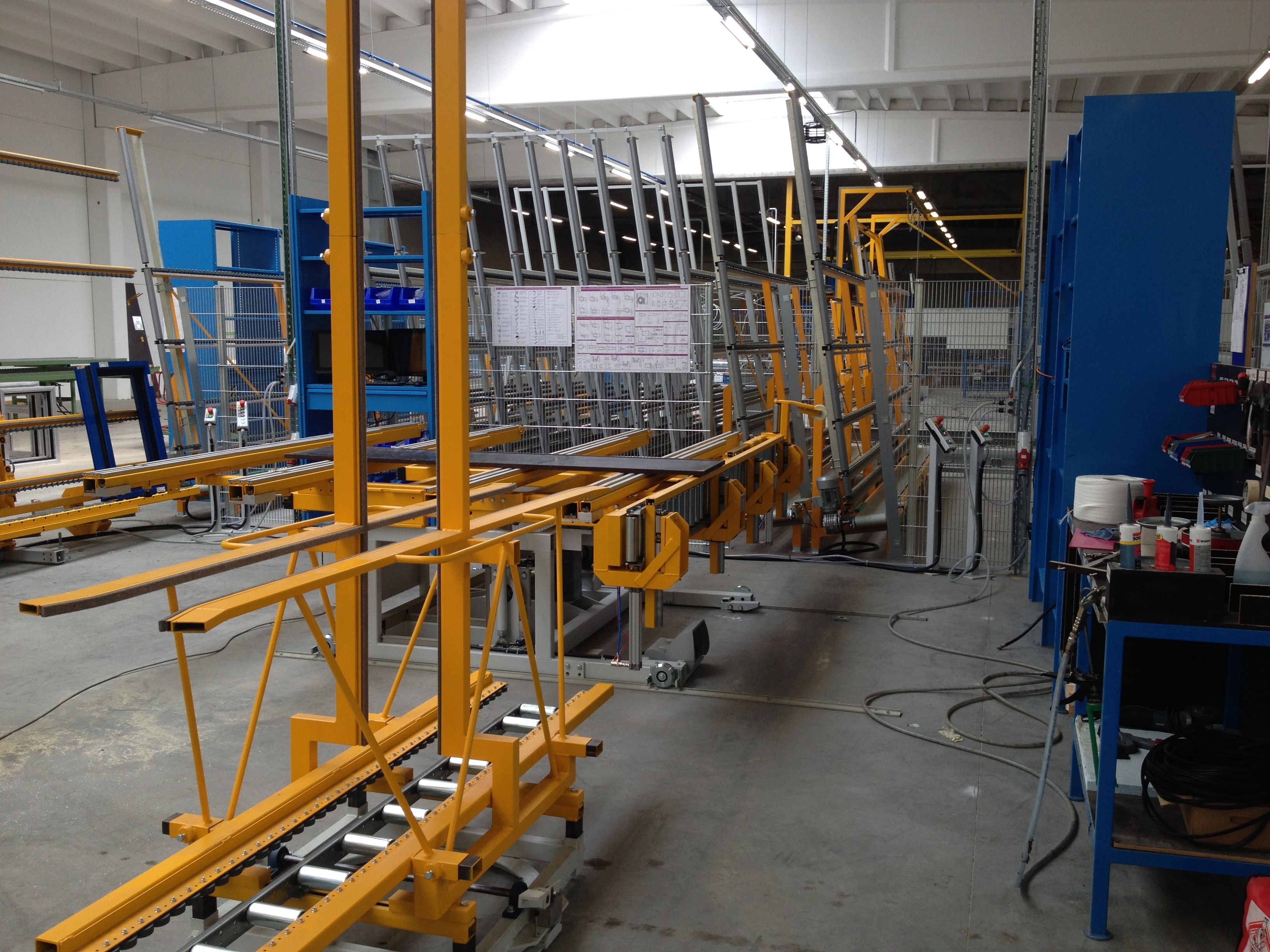

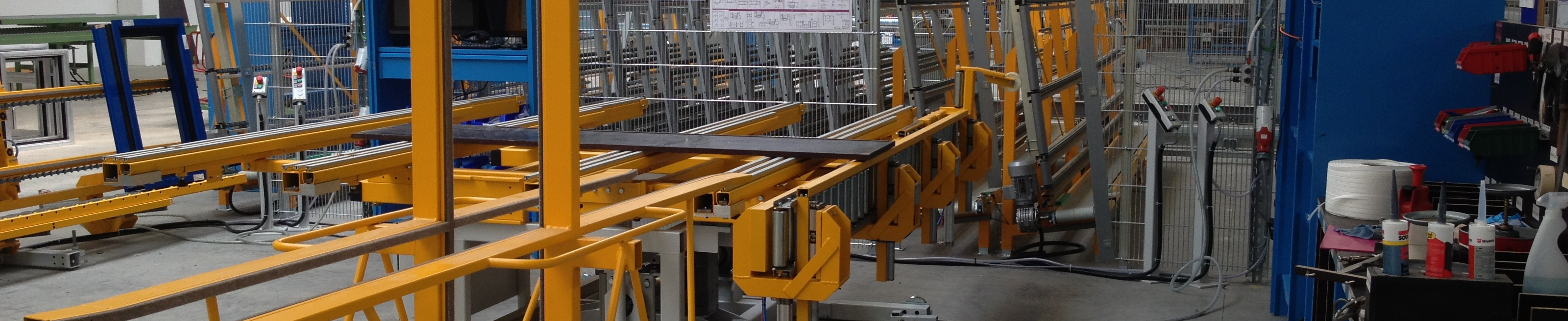

The rotating system is mounted next to a tiltable assembly table. When the assembly table is in the vertical position, the element can be easily slid onto the rotating system via the bottom roller conveyor. The element is rotated 180° and then moved back to the assembly table. In this way, a single operator can independently rotate large and heavy elements. Optionally, the rotating system can be made mobile on rails for position adjustment or for use with multiple assembly tables.
