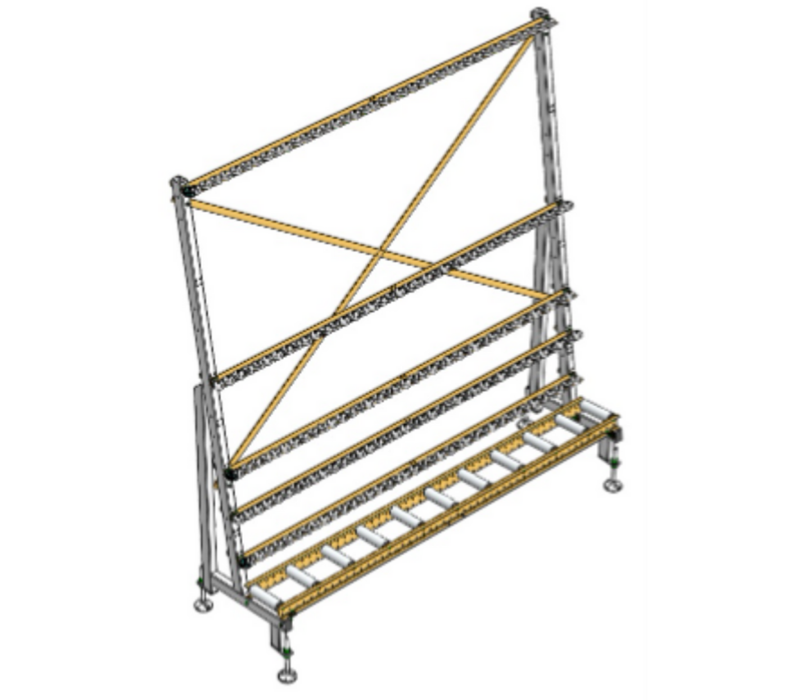

Vertical roller conveyor
TM-50.101
For vertical transport of elements
- Base unit length 2.000 / 3.000 mm
- Extension unit length 1.000 / 2.000 mm
- Support surface with 5 rows of rubber rollers
- Steel rollers 200 mm length, 200 mm spacing
Specifications
Base unit available in lengths of 2.000 mm or 3.000 mm. Extension unit available in lengths of 1.000 mm or 2.000 mm, allowing for custom total lengths.
- Support surface height: 1.900 mm
- Standard with 5 rows of rubber rollers for damage-free handling
- Maximum load capacity: 250 kg/m
- Optional protective rollers (height 3.000 mm) can be mounted on left and/or right side for transfer to a mobile conveyor
- Bottom rollers: steel, 200 mm length, 200 mm spacing, diameter 50 mm
- Adjustable conveyor height: 270–350 mm
- Conveyor depth: 700 mm
- Total height: 2.280 mm
- Standard color: RAL 7035
