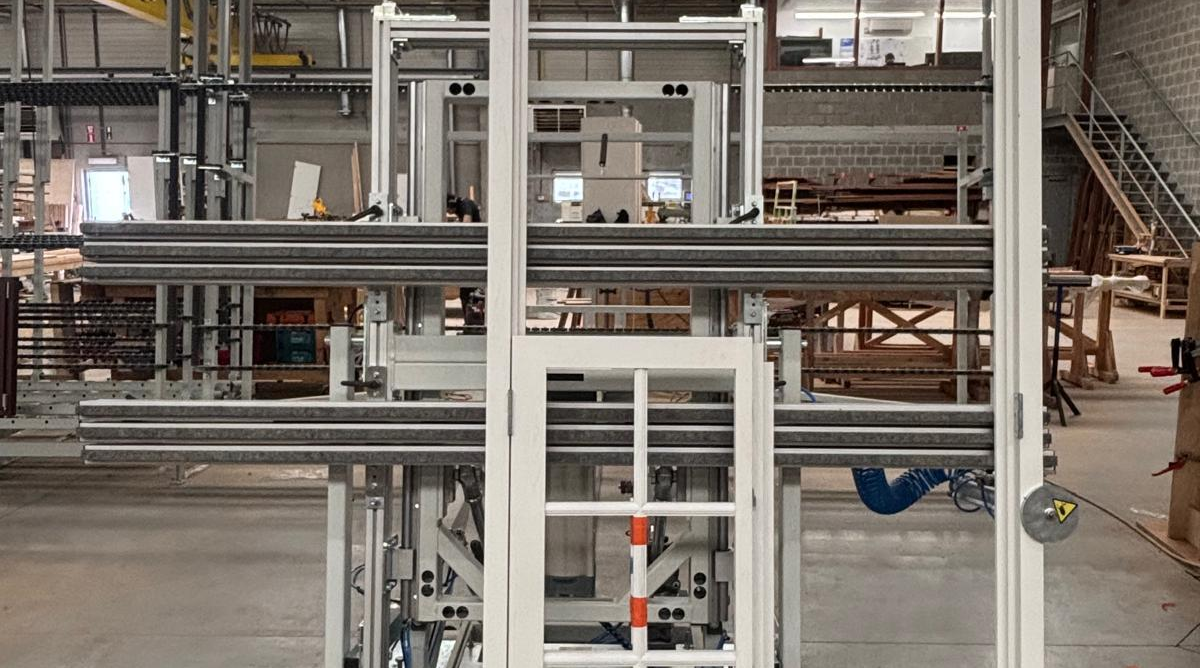

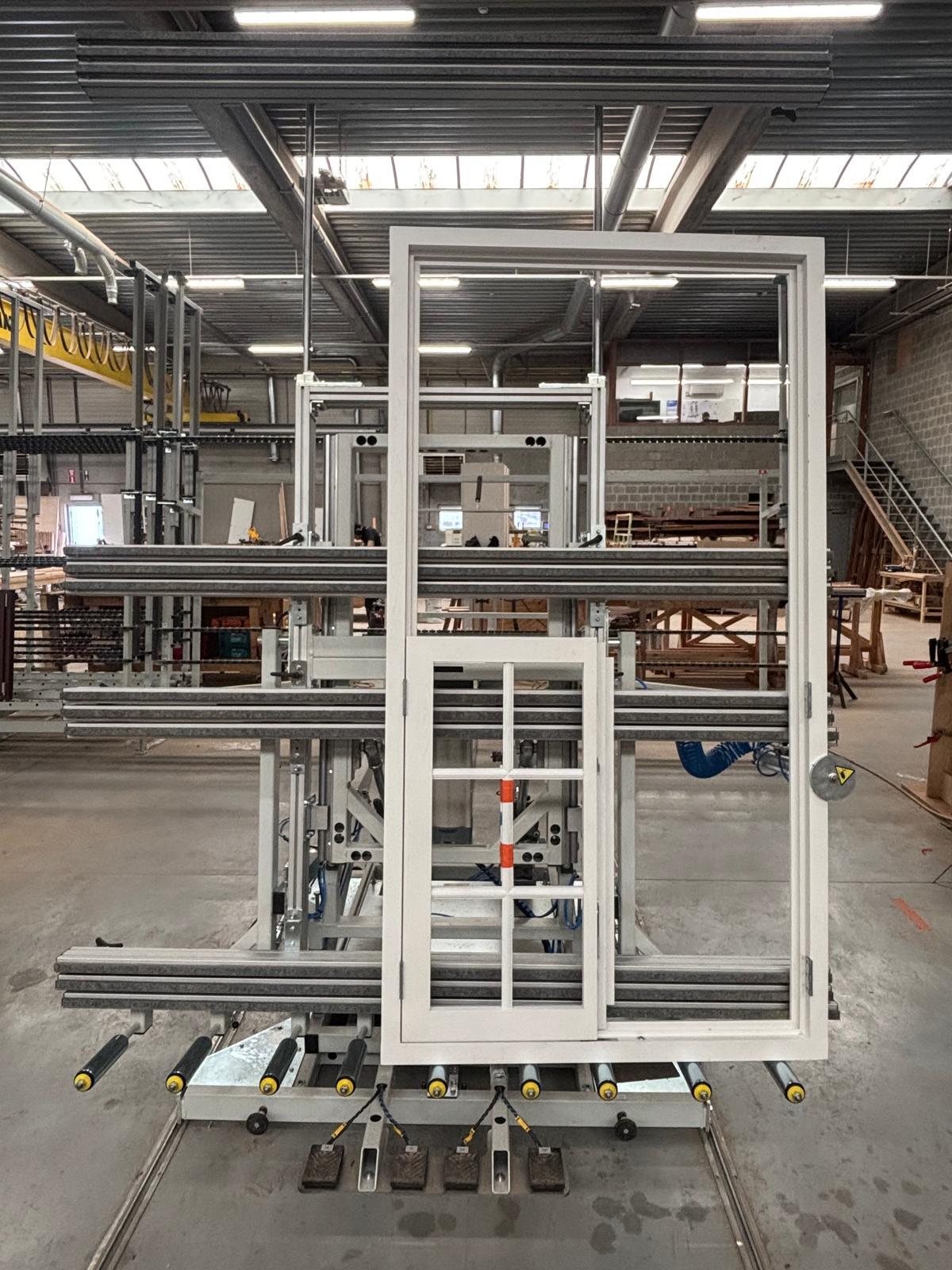

Assembly station
TM-50.56
For the final assembly of windows and doors
- Vertical roller conveyor with rubber rollers
- Mobile and extendable assembly table
- Pneumatically tiltable assembly table
- 360° rotatable with locking brake

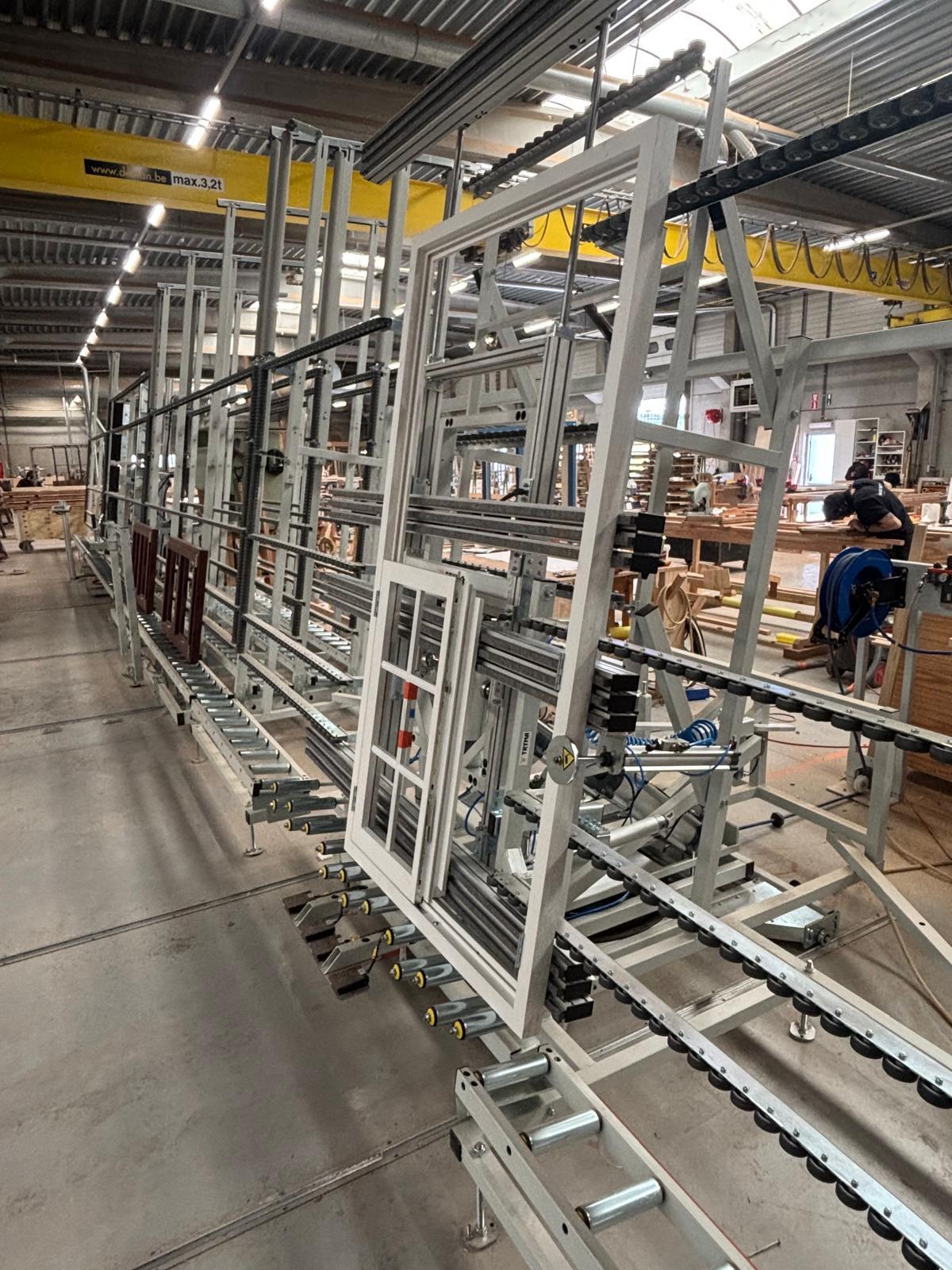

- Integration into a vertical assembly line
- Vertical roller conveyor with a length of 4.500 mm
- Support surface with rows of rubber rollers
- Possibility of sliding in the assembly table
- Folding mechanism during insertion and removal of the assembly table
- Pneumatic lifting device for transferring elements from the roller conveyor
- Mobile assembly table on 2 rails with brake
- Extendable assembly table up to 4.500 x 2.500 mm
- Work platform with 4 adjustable support beams
- Support beams protected with rubber, felt, brushes, or sliding strips
- Pneumatically tiltable assembly table
- Clamping cylinder for the element during tilting ensures operator safety
- 360° rotatable assembly table with locking brake
- Pneumatically foldable lower roller conveyor
- One operator can independently assemble both sides of the element without assistance from a second operator
- Possibility of integration into a vertical assembly line
