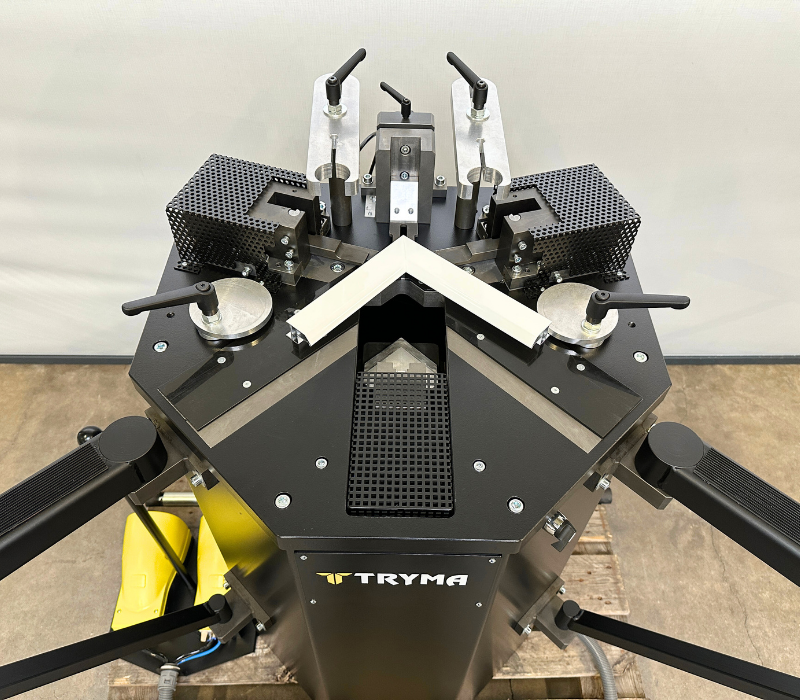

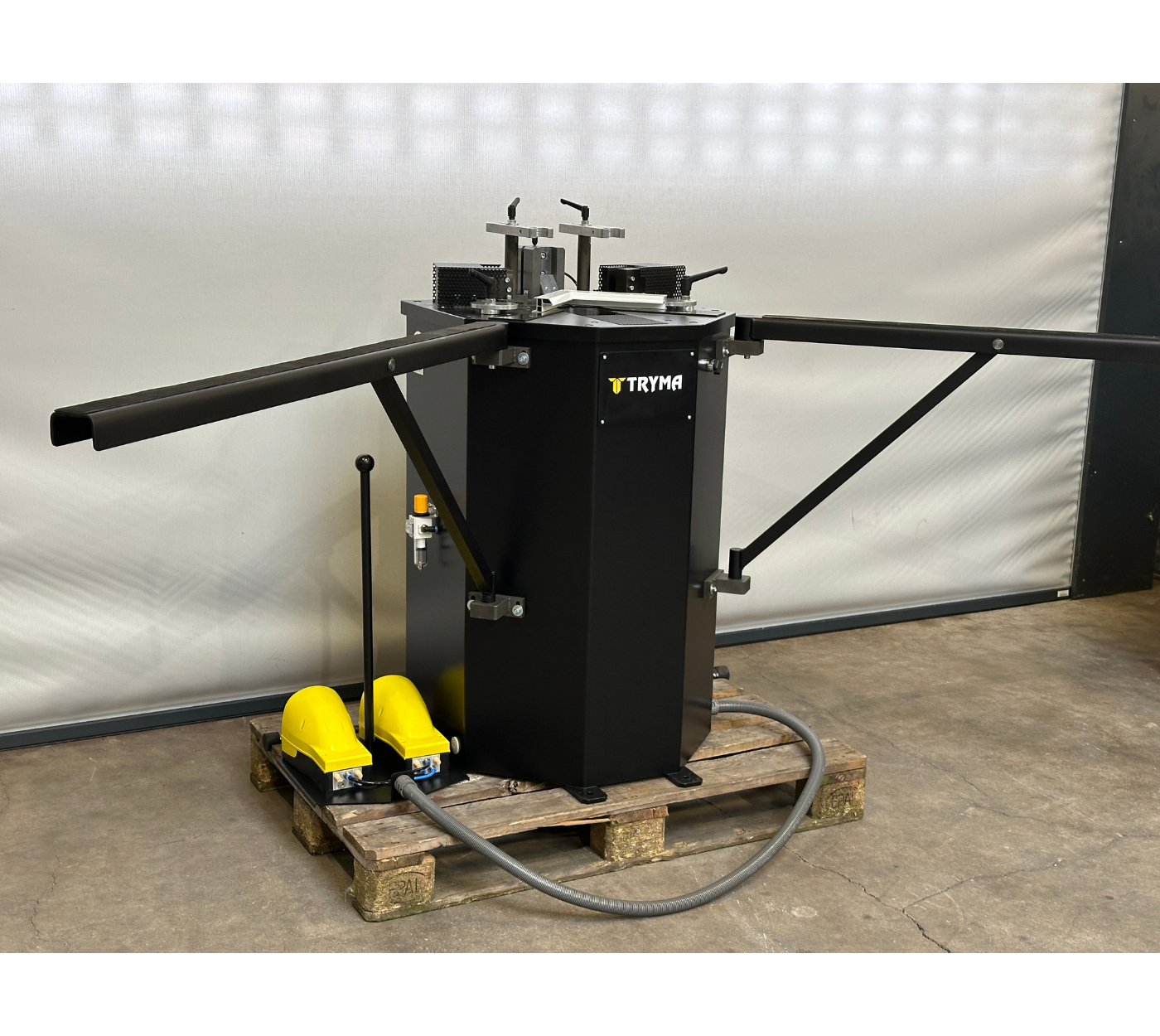

1-head corner crimping machine
TM-KLEV-100
Pneumatic corner crimping machine for crimping aluminium insect screen windows
- Pneumatic profile clamping
- Maximum profile height 90 mm
- Maximum profile width 100 mm
- 2 support arms
- Foot pedal operation
Specifications
The single-head corner crimper is supplied as standard with one set of crimping knives, one counterblock, two support arms, and a foot pedal for operating the machine.
The machine is designed for crimping small aluminium profiles and insect screens. Crimping is performed from the outside at a fixed position.
Technical specifications
Max. profile height
90 mm
Max. profile width
100 mm
Press force kN
35 kN
Wall thickness of profile
tot 2,5 mm
Press stroke
20 mm
Stop against block
100 mm
