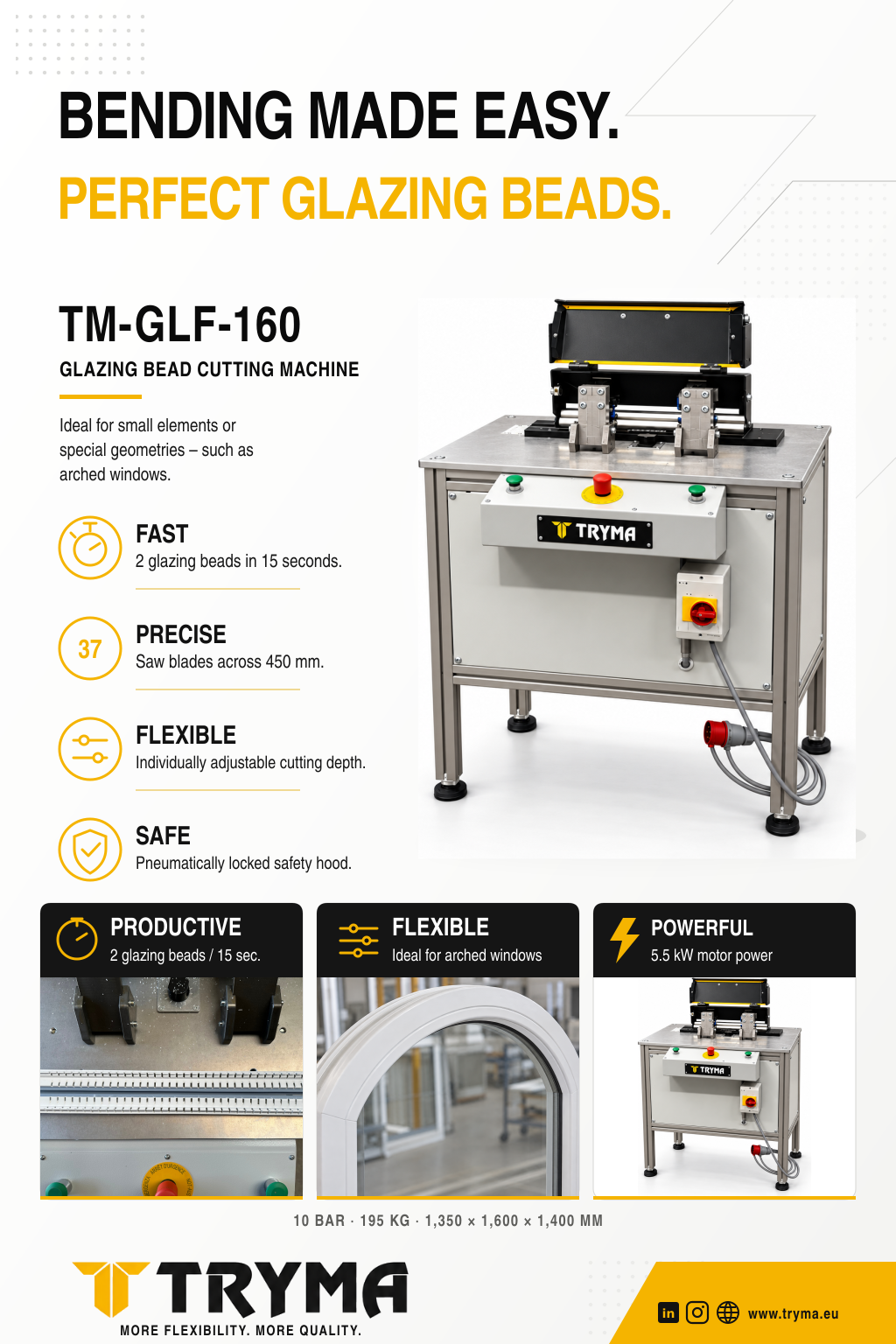

Glazing bead cutting machineTM-GLF-160
For cutting grooves in PVC glazing beads
- Feed via two-hand operation
- Simultaneous processing of 2 glazing beads in 15 seconds
- 37 saw blades distributed over 450 mm
- Adjustable cutting depth via depth stop
Specifications
- Compact machine
- For cutting grooves in PVC glazing beads
- Pneumatic feed of the saw blades
- Saw blade width: 2.5 mm
- 4 pneumatic clamps to secure the glazing beads during processing
- Possibility to process different types of glazing beads by exchanging a plastic support block
- Pneumatic locking of the safety guard
- Connection to a dust extraction system possible
- CE compliant
Technical specifications
Motor
5,5 kW
Air pressure
10 bar
Dimensions
1.350 x 1.600 x 1.400 mm
Weight
195 kg
