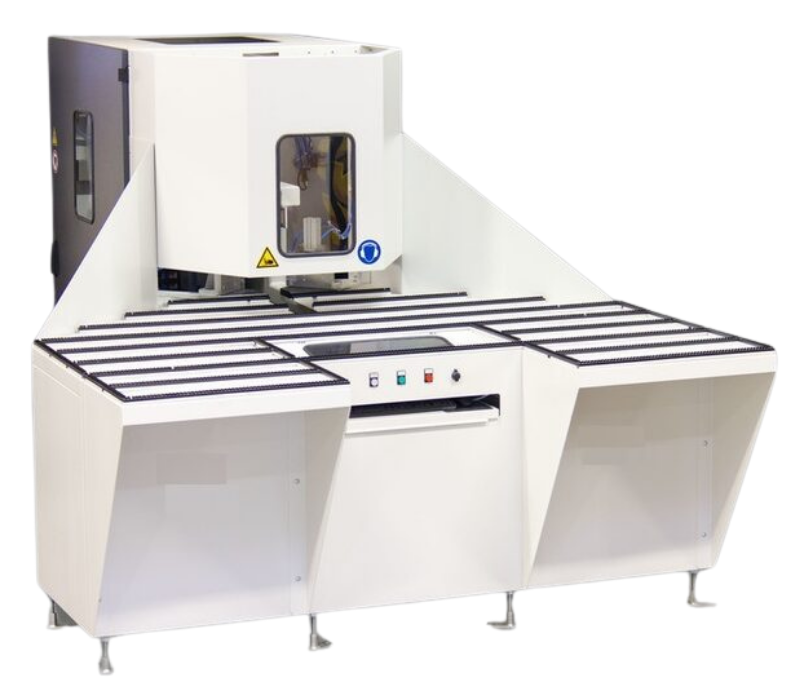

CNC corner cleaning machine
TM-APH-LA
For polishing welded plastic window and door frames
- Tools configurable according to profile types
- Linear guides for high speed
- Easy creation of new programs
- Operation via graphical user interface
Specifications
CNC corner cleaning machine with maximum processing speed and precision thanks to state-of-the-art linear technology. Controlled via a Windows-based system with patented software for visually creating and editing programs, no CNC knowledge required. The machine can be equipped with up to 19 tools.
Optional features:
- Extra blade for flat or groove surfaces of choice
- Milling unit for internal corners / visible surfaces
- Automatic profile recognition
- CNC unit for combination of sash and mullion
- Horizontal drilling unit for sash hinges
- Connection to a rotary station
Technical specifications
Power
2,5 kW - 230 / 400 V - 50 Hz
Air pressure
6 bar
Weld width
min. 320 mm (exterior)
Welding height
min. 320 mm (exterior)
Profile width
max. 130 mm
Profile height
max. 118 mm
Dimensions
1.300 x 2.200 x 2.200 mm
Weight
1.300 kg
