1-head welding machine
TM-A1
For welding pvc profiles
- Adjustable welding angles between 30° and 180°
- Profile height from 30 mm to 180 mm
- Profile width depending on welding angle
- Weld bead limitation 0.2 mm with heated blades

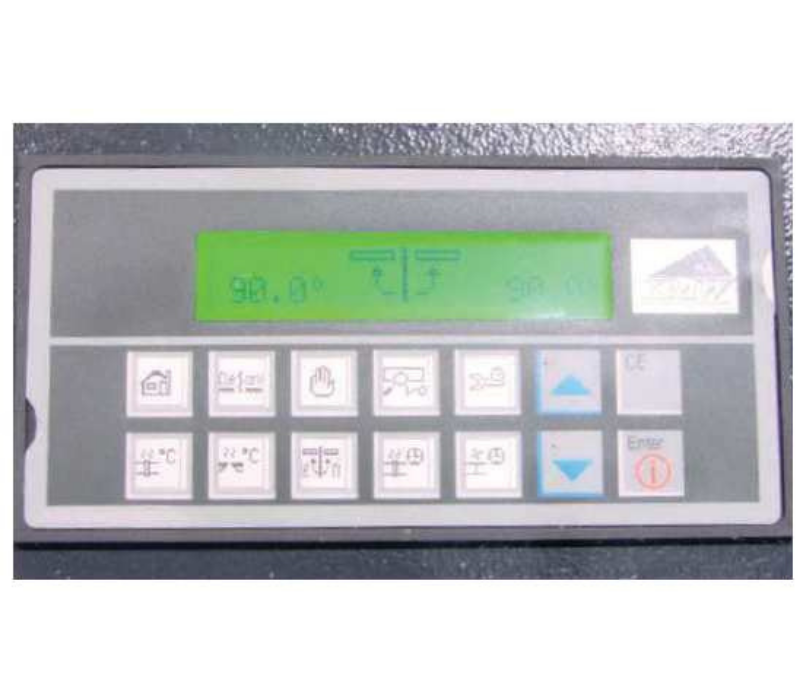

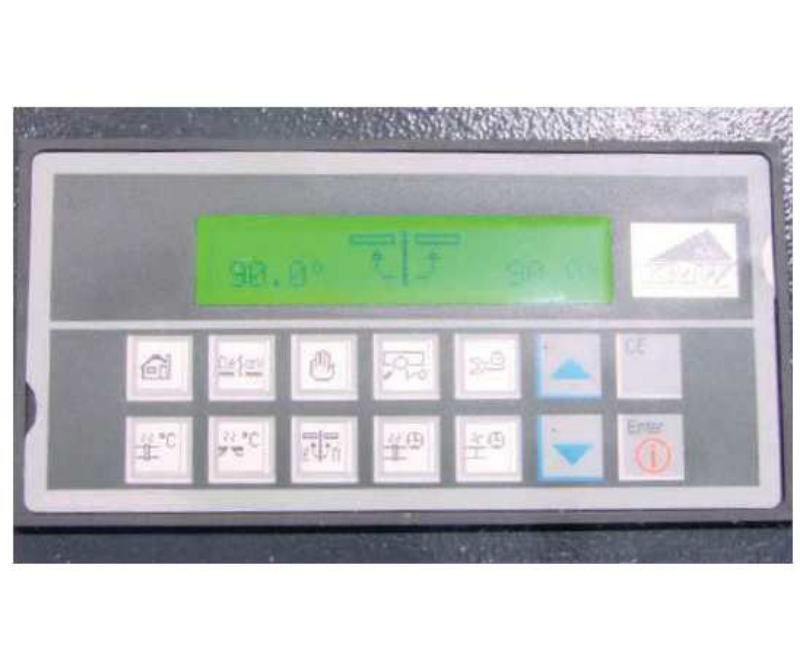

- Electronically adjustable welding and cooling time and weld temperature
- Quick-change system for Teflon
Specifications

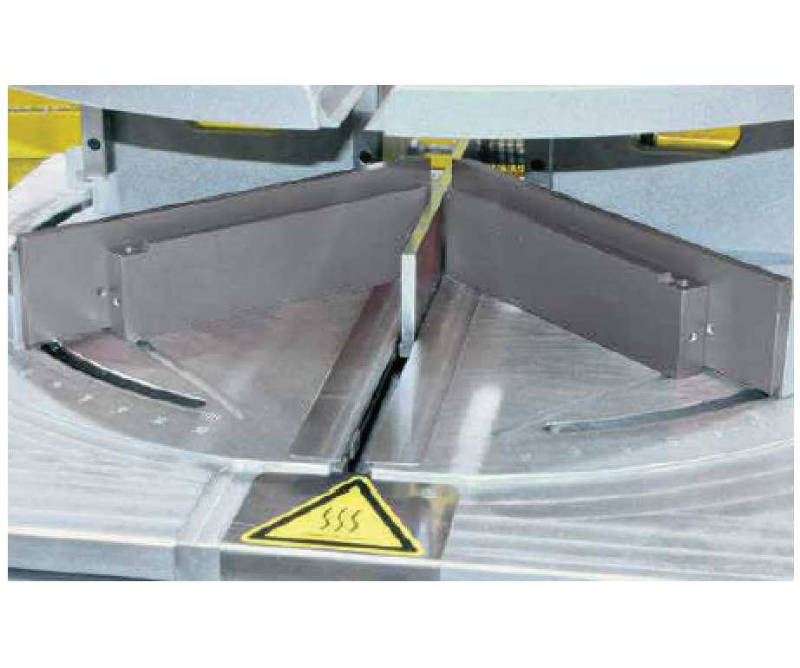

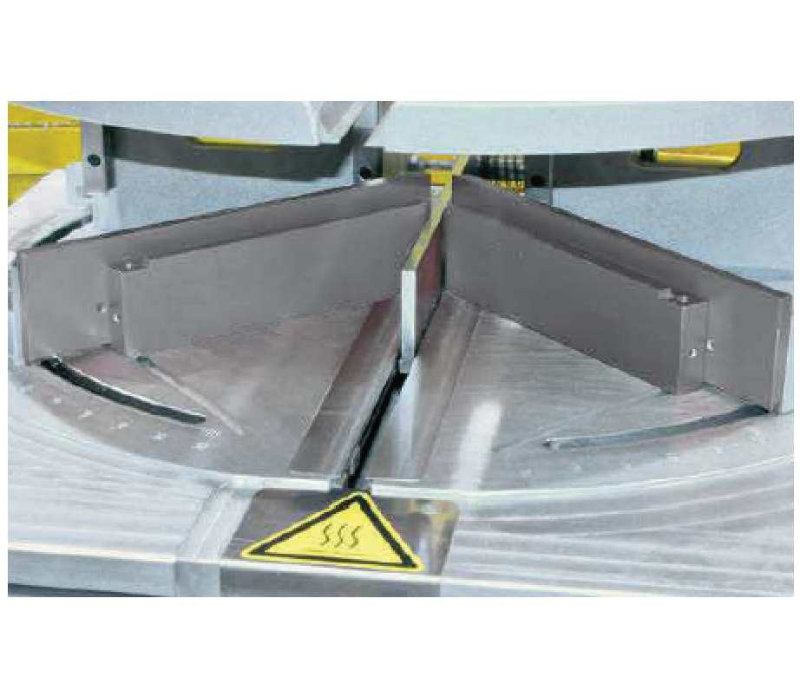

The welding machine is equipped with heated blades, a welding mirror with automatic temperature adjustment via a digital thermostat, and a standard weld bead limitation of 0.2 mm. The melt depth is 3 mm on each side.
Optionally, the machine can be equipped with welding blocks and is suitable for welding all types of standard, acrylic, and coated profiles. The complete welding cycle is controlled by a PLC for heating, melting, and cooling.
Optionally, the machine can also be equipped with seal presses, a welding mirror up to 600 mm, and a digital readout of the welding angle.
