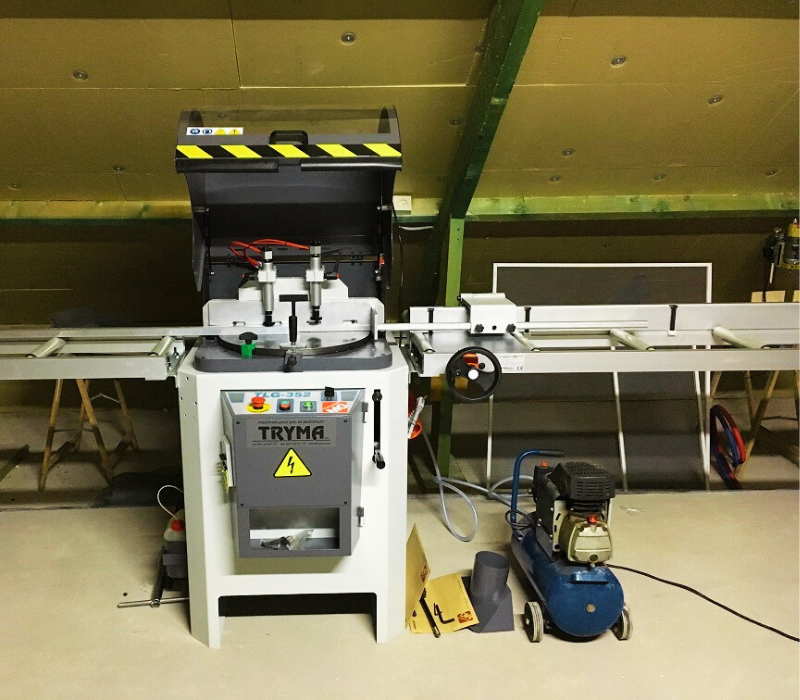

The TM-TN length stop is suitable for plastic and aluminum profiles. The stop is moved by operating the handwheel. The position of the stop is shown via an analog readout. Once the correct position is reached, the stop can be pneumatically locked by pressing a push button.

The stop can be manually folded away for easy removal of profiles after cutting. It can be mounted on either the left or right side of a machine and is available in different lengths: 3,000, 4,000, and 6,000 mm.

The roller conveyor is open and equipped with plastic rollers with a diameter of 40 mm and a length of 300 mm. The maximum load capacity is 70 kg per meter. On request, the roller conveyor can be supplied with a width of 400 or 500 mm.

As standard, the roller conveyor is fitted with aluminum support legs and a fixed adjustable working height between 800 and 1,050 mm. Alternatively, steel support legs can also be installed.
