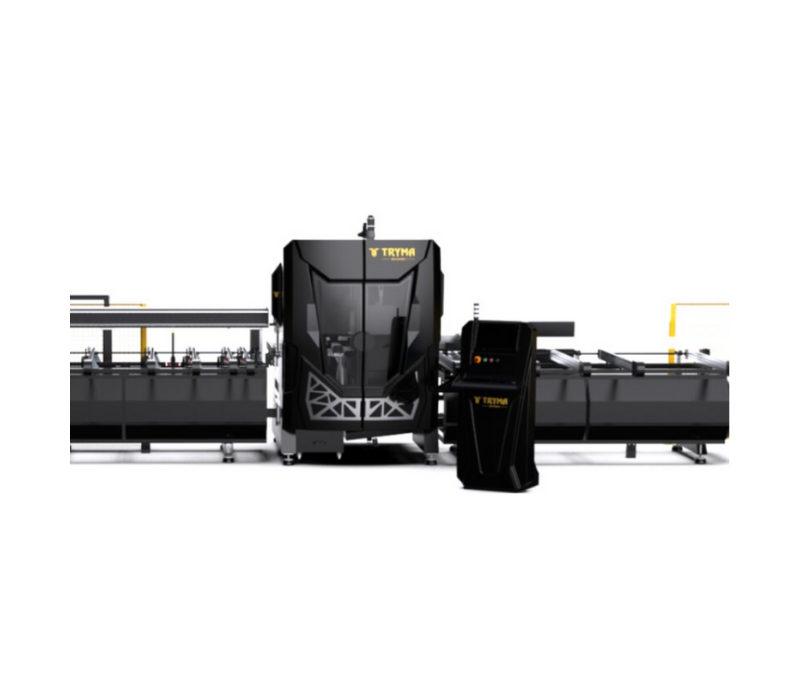

Cutting & machining center
Turbocut 500
For cutting and machining pvc profiles
- Automatic profile loading magazine
- 3-axis controlled, 360° rotatable gripper
- Milling module with a total of 9 milling motors
- 2 saw blades with Ø 450 mm and Ø 550 mm
- Cutting range 30°–150° with 0.1 mm accuracy
- Automatic custom-sized profile unloading magazine
- Industrial PC with user-friendly software
- Equipped with label printer at the output side
Specifications
The Master 550 is a fully automatic CNC machining center for cutting and processing PVC profiles. The machining unit can process profiles on all four sides using any of the 9 air-cooled milling motors.
The saw unit is equipped with two saw blades of 450 mm and 550 mm and can cut angles between 30° and 150° with an accuracy of 0.1 mm. The 3-axis controlled gripper is 360° rotatable, allowing even complex profiles to be easily loaded. The machine comes with user-friendly CAM software, compatible with all commonly used production planning systems.
Technical specifications
Voltage
380 - 400 V / 50 - 60 Hz
Air consumption
450 l/min.
Air pressure
6 - 8 bar
Saw blade diameter
450 mm en 550 mm
Min. / max. profile width
30 mm / 130 mm
Min. / max. profile height
35 mm / 160 mm
Min. / max. profile length
370 mm / 6.470 mm
Min. / max. saw length profile
250 mm / 6.500 mm

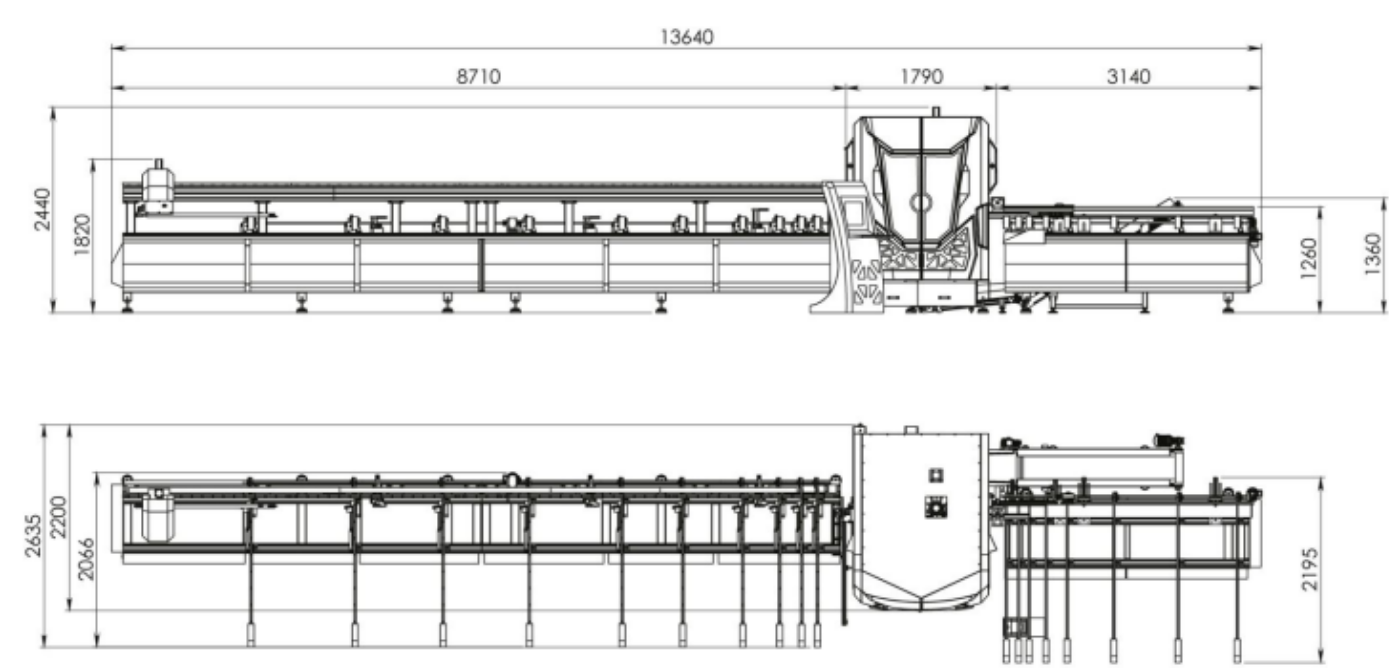

Dimensions
2.450 x 13.650 x 2.640 mm
Weight
4.100 kg
